Hybrid Continuous Gas Analyzer For Hazardous Areas

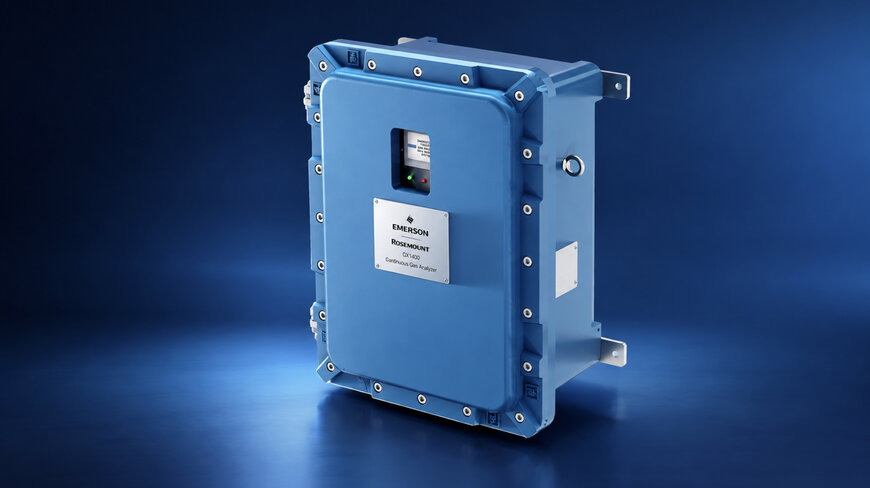

Monitoring gas streams in explosive industrial environments requires balancing high analytical precision with strict safety compliance, creating engineering challenges for continuous emission monitoring systems and natural gas quality tracking. Emerson addresses this operational requirement by releasing the Rosemount QX1400, a hybrid gas analyzer certified for hazardous operational areas across chemical, petrochemical, and liquefied natural gas facilities.

Engineering Challenges in Hazardous Gas Monitoring
Industrial facilities managing carbon capture, underground storage, and petrochemical processing often require continuous, precise multicomponent measurement under strict safety mandates. Traditional installations frequently demand expensive explosion-proof or purged enclosures to safeguard sensitive analytical hardware when deployed near hazardous sampling points. This constraint increases engineering complexity, capital costs, and maintenance downtime.

Operating Principle and System Architecture
The Rosemount QX1400 addresses these architectural limitations by integrating two distinct measurement technologies into a single modular platform. It utilizes paramagnetic detection for oxygen measurement and quantum cascade laser direct absorption spectroscopy for all other target gases. This hybrid approach leverages the intrinsic high selectivity of laser-based measurement to monitor complex gas streams in real time. Standard configurations support multicomponent detection of one to four regulatory gases simultaneously, including carbon monoxide, carbon dioxide, oxygen, nitric oxide, nitrogen dioxide, and sulfur dioxide, with optional support for methane and nitrous oxide.

Hazardous Area Certifications and Industrial Integration
Engineered to operate directly within hazardous locations without secondary protective enclosures, the device holds ATEX II 2G Ex d IIB H2 T4 certifications for Europe and IECEx Ex db IIB+H2 T4 Gb for international markets, with North American Class 1, Division 2 certifications anticipated. By eliminating external explosion-proof housings, engineers can position the analyzer closer to the process sampling point, reducing response time lag and installation expenses. Commenting on the engineering rationale, Dr. Beth Livingstone, Global Product Manager for Process Gas, notes that the platform combines complementary technologies into a single certified unit to simplify system design without compromising measurement fidelity in critical emissions and purity applications.

Additional Context:
This section details technical specifications and competitive benchmarking not included in the original product announcement.

The Rosemount QX1400 builds directly upon the hardware architecture of the non-certified Rosemount QX1000 platform, extending its high-precision sensing capabilities into classified explosive atmospheres. In industrial process control, traditional continuous emissions monitoring systems typically rely on extractive sampling architectures that require complex sample conditioning systems and remote, non-hazardous shelters to house sensitive electronics. By achieving direct hazardous-area certification for a hybrid optical and paramagnetic design, this analyzer aligns with modern industrial trends toward distributed control system architectures and reduced physical footprints. Regulatory standards such as ATEX and IECEx govern electrical equipment in explosive atmospheres, requiring flameproof enclosures (designated by the Ex d or Ex db protection level) capable of containing internal explosions without igniting surrounding flammable gas mixtures containing hydrogen, indicated by the IIB+H2 rating. Compared to conventional single-technology analyzers, hybrid systems reduce the total number of sample taps and stream switching components required for comprehensive process monitoring.

Edited by Sucithra Mani, Induportals editor – adapted by AI.
