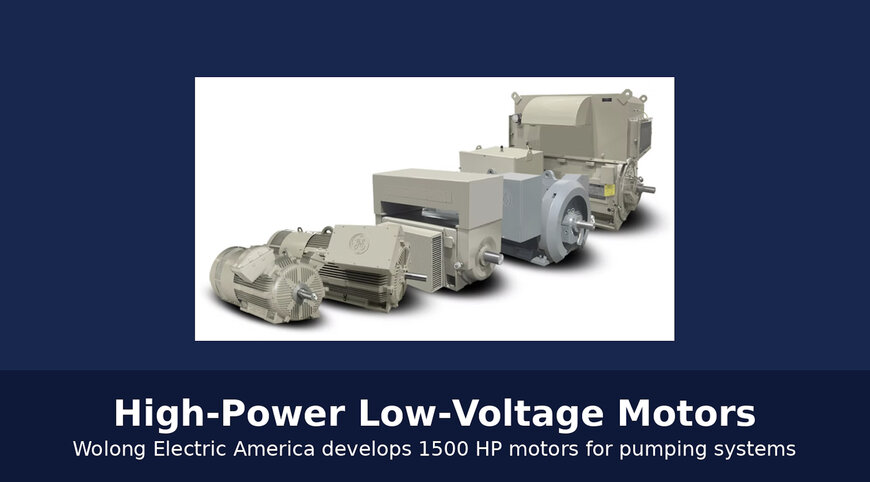

High-Power Low-Voltage Motors for Industrial Pumping

Wolong Electric America has introduced a new series of high-power low-voltage electric motors designed for horizontal pumping and compression systems. The motors deliver outputs up to 1500 horsepower at 460 V, enabling applications that typically require medium-voltage machines while maintaining compatibility with existing low-voltage infrastructure.

High-Power Output in a Low-Voltage Architecture
Industrial pumping systems in oil and gas processing, natural gas compression, and power generation often rely on medium-voltage motors to achieve high horsepower ratings. Wolong Electric America’s latest addition to its Quantum horizontal motor platform addresses this constraint by providing up to 1500 HP in a 460 V, 2-pole, three-phase configuration.

The motors are built within the Quantum WPII 580 frame, enabling high power density while maintaining a footprint comparable to conventional medium-voltage equipment. By achieving high output within a low-voltage design, the motors allow operators to deploy a single unit instead of installing multiple smaller machines or converting infrastructure to medium voltage.

For facilities operating established low-voltage distribution networks, this approach eliminates the need for step-up transformers or major electrical system upgrades. The result is simplified system integration and reduced capital expenditure in high-capacity pumping applications.

Mechanical Design and Environmental Reliability
The motors incorporate several design features intended for operation in demanding industrial environments. These include inverter-grade insulation, insulated flange-mounted sleeve bearings, and a form-coil epoxy vacuum pressure impregnation (VPI) insulation system.

Such characteristics enable reliable operation with variable frequency drives (VFDs), which are commonly used to control motor speed in process industries. The insulation and bearing configuration also support use in moisture-laden environments typical of oil, gas, and petrochemical facilities.

Certification to API 541 and API 547 standards confirms suitability for heavy-duty industrial service, while CSA certification supports compliance with North American electrical safety requirements. The motors are also rated for use in Division 2 hazardous locations, where flammable gases or vapors may be present under abnormal conditions. Operational temperature capability ranges from –40 °C to 50 °C, allowing deployment in both cold-climate and high-temperature industrial installations.

Installation and Maintenance Considerations
The motors are designed for straightforward integration into existing systems. Standard configurations include built-in bearing temperature detectors (BTD), resistance temperature detectors (RTD), space heaters, and additional access boxes to simplify monitoring and installation.

Optional maintenance-free sleeve bearing configurations are available, reducing the need for periodic servicing and contributing to lower lifecycle maintenance costs. The motors are engineered for an expected operational lifespan exceeding 20 years under typical industrial operating conditions.

By delivering high horsepower within a low-voltage platform, the motors reduce the number of components required in pumping systems, which can simplify maintenance procedures and reduce downtime.

Applications Across Industrial Process Systems
The motor platform targets applications requiring high power density and continuous operation. Typical uses include oil and gas production systems, municipal and industrial power generation facilities, centrifugal compressors, large water chillers, and industrial ventilation systems such as fans and blowers.

The motors support voltages up to 575 V and 600 V and are designed for compatibility with VFD-controlled systems. According to the manufacturer, replacing multi-motor configurations with a single high-capacity unit can increase system productivity by 70–80% in certain installations while reducing system complexity.
